This project is a complete vape store interior design layout. The space combines wall-mounted shelving, floor-standing island units, and a long checkout counter to organize e-cigarette products by category. The fixture system uses orange counter tops, white laminated cabinetry, and orange category header strips. Dark gray floor tiles and a black ceiling provide a neutral backdrop. The layout supports a standard retail circulation path from entrance to checkout. We manufacture custom display cases for retail spaces of all types.

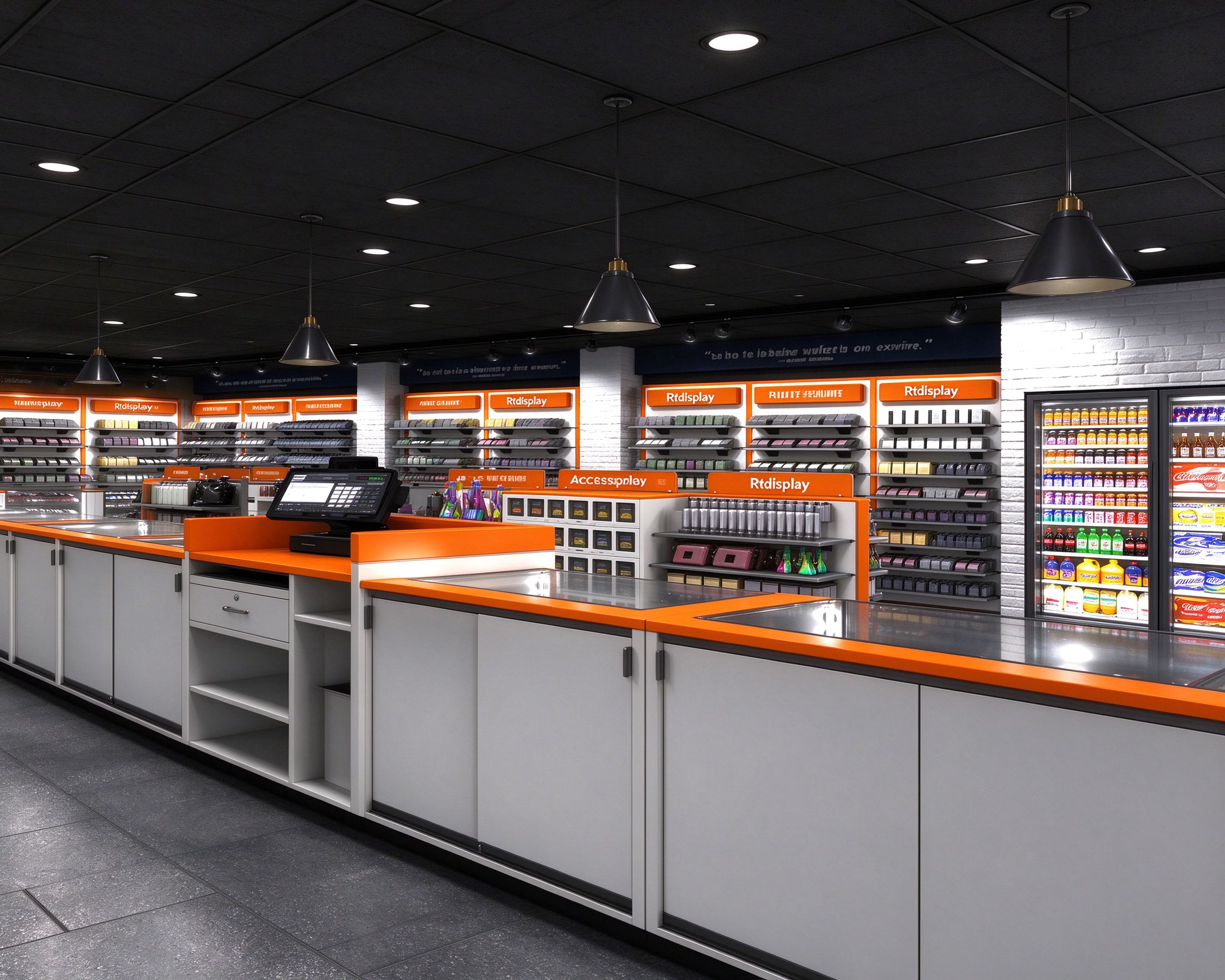

Store Overview

The main view shows the checkout counter in the foreground. The counter runs along the right side with orange solid-surface tops and white laminated cabinet doors. Embedded glass display slots and stainless steel sinks are set into the counter work surface. A double-door glass beverage refrigerator stands against the white brick wall on the right side of the space.

Behind the counter, wall-mounted display shelves cover the entire back wall. Each shelf section has an orange header strip with printed category labels. Black cone-shaped pendant lights hang from the ceiling over the counter area. The floor uses large-format dark gray ceramic tiles laid in a straight grid. The same shop display counters line the customer path throughout the store.

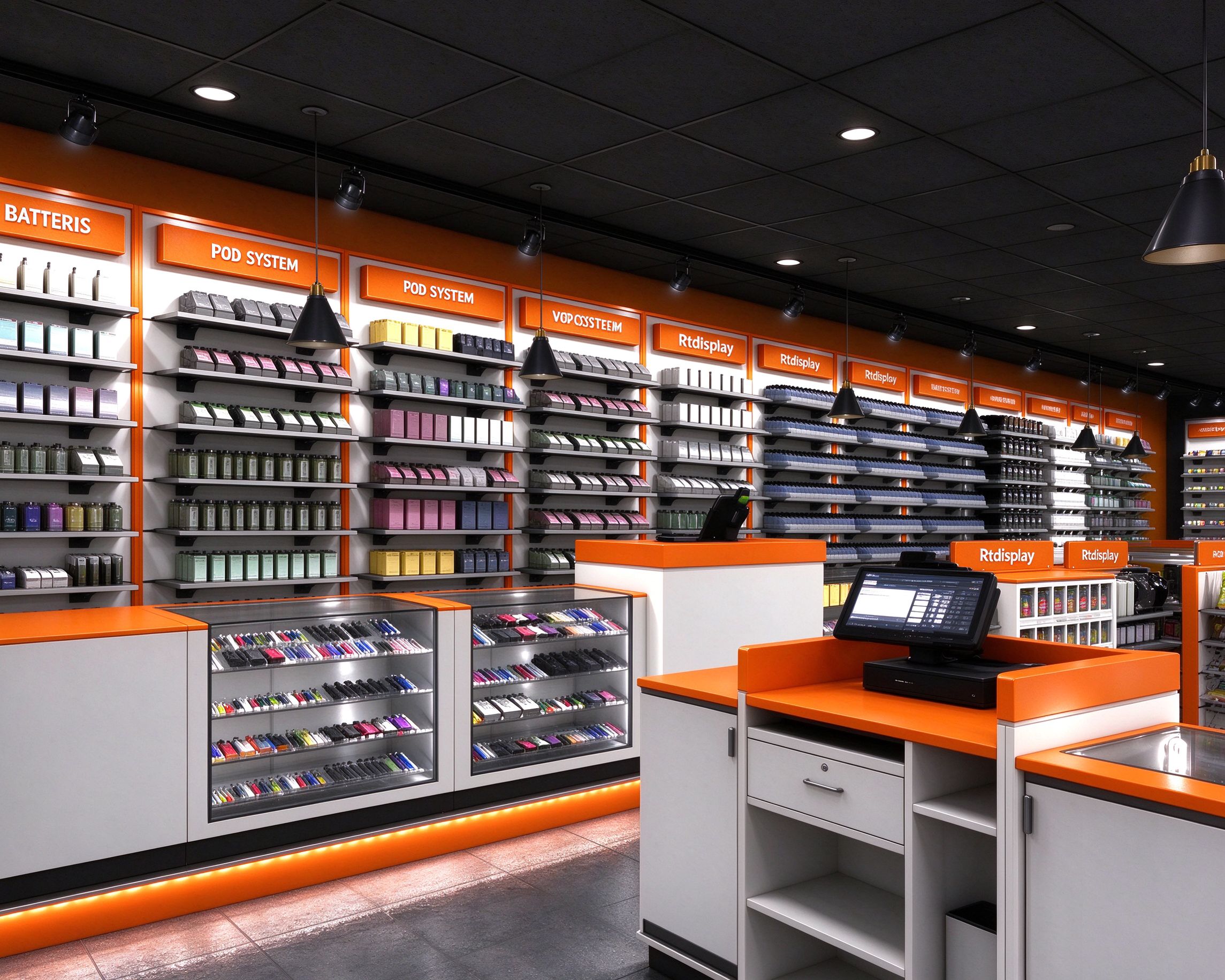

Wall Display Racks

The left view looks along the long wall shelving system. Multiple sections of white wall-mounted racks run the full length of the wall. Each section has adjustable white shelves on metal uprights, with orange header strips labeling product categories such as batteries, pod systems, vape pen kits, and disposable e-cigarettes.

Below the wall racks, glass display counters with orange tops line the wall base. The glass fronts expose product trays inside. LED strip lighting runs along the bottom edge of each counter to wash the floor. The dark gray floor tiles and black ceiling with recessed downlights continue uniformly across the whole space. These retail store displays are built to hold e-liquid bottles and device boxes.

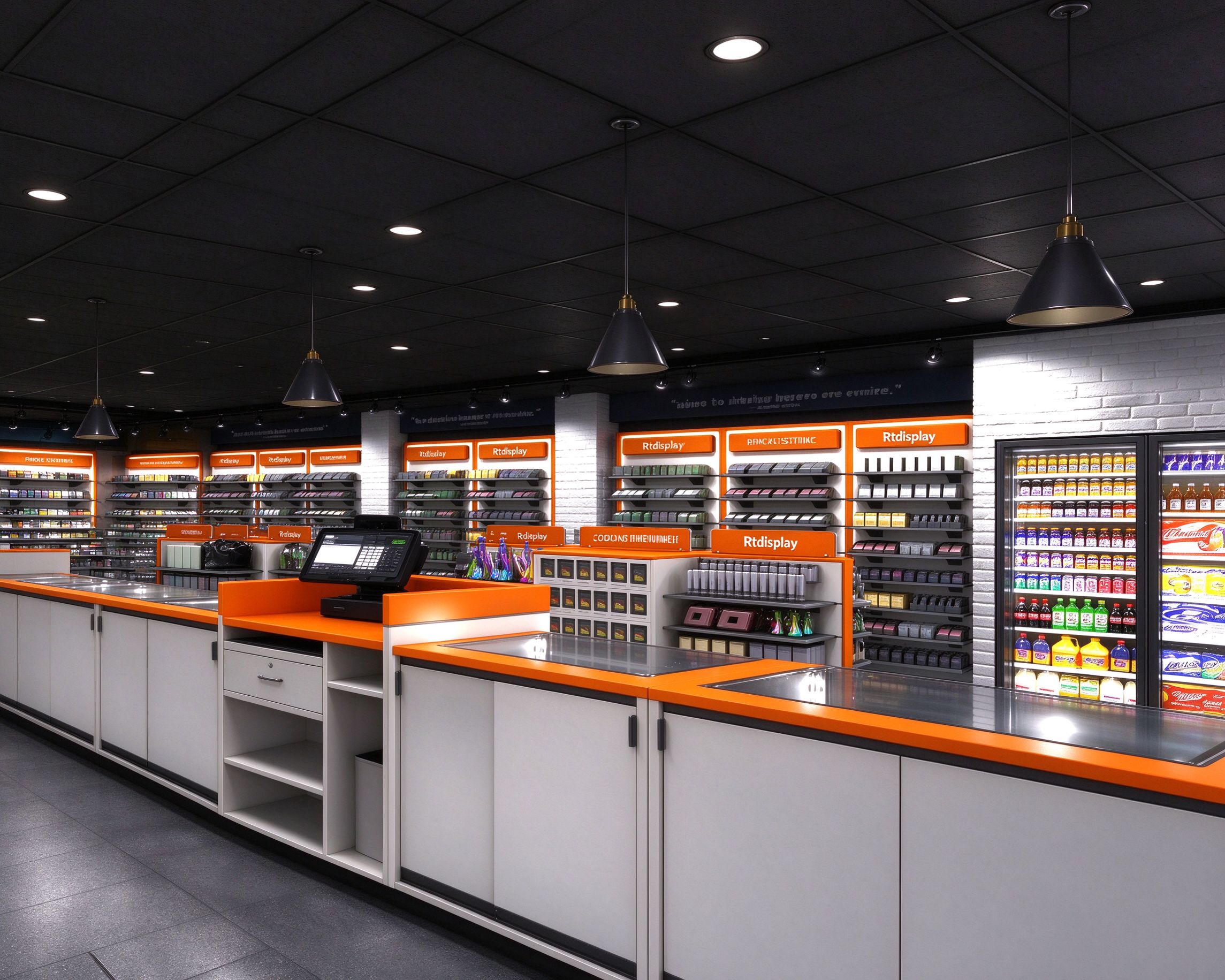

Checkout Counter Area

The right view shows the long checkout counter from the customer side. The counter extends from the foreground toward the back wall. White cabinet doors with vertical bar handles face the customer. Orange counter tops hold embedded glass display wells and stainless steel work surfaces for staff use.

On the far right, a double-door glass beverage refrigerator sits against the white brick wall, stocked with canned and bottled drinks. The back wall display shelves with orange headers are visible in the distance. Black cone pendant lights hang evenly along the ceiling plane. The glass display showcases in the counter allow customers to browse products while waiting.

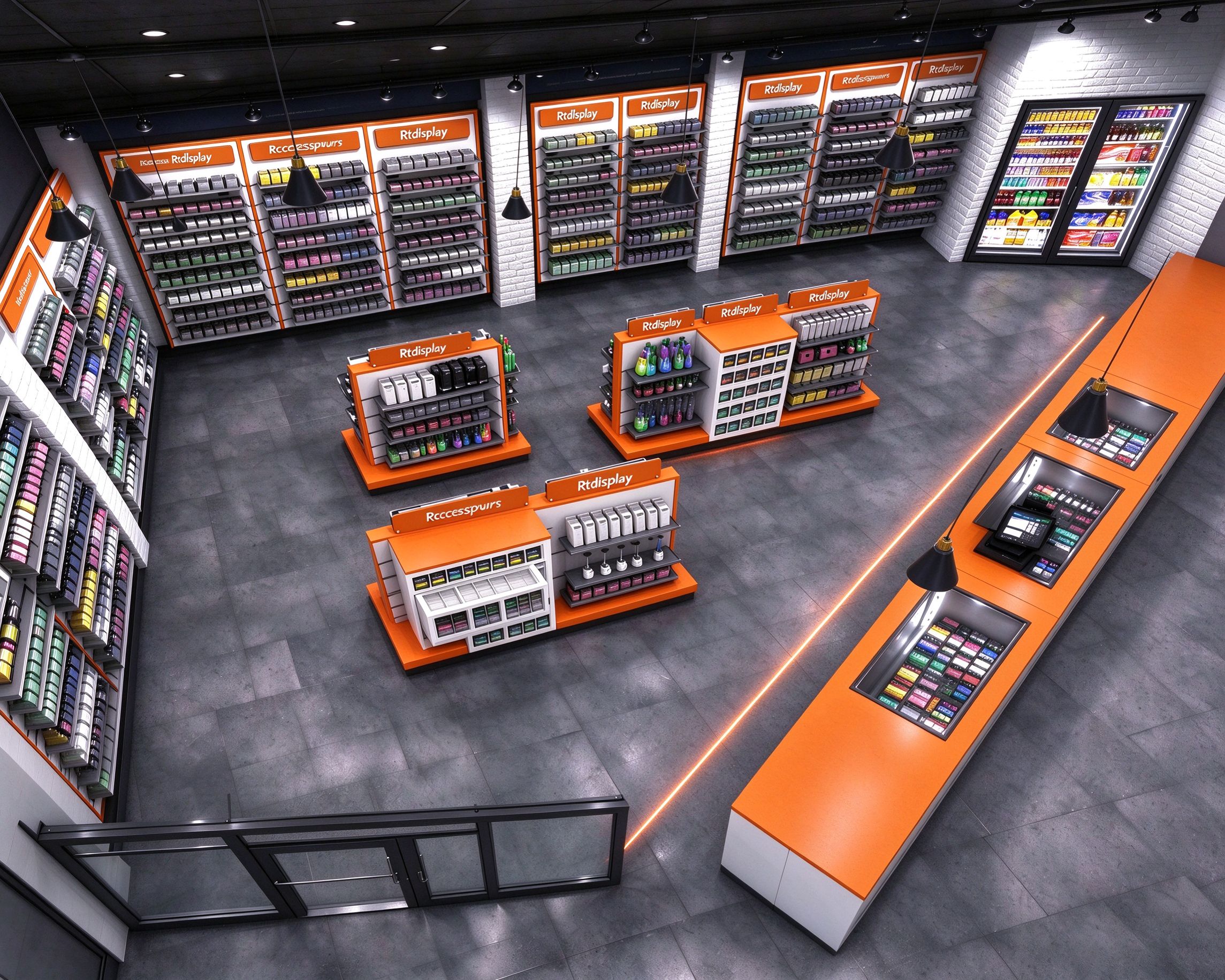

Floor Plan Layout

The bird’s eye view shows the complete floor plan from above. The rectangular store has wall shelving on the back and left walls. The long checkout counter runs along the right-front area. Multiple island display units with orange bases are positioned in the center, creating clear circulation aisles on both sides of the fixtures.

The glass entrance doors are located at the front-left corner. The beverage refrigerator occupies the right-rear corner against the brick wall. The layout follows a standard retail circulation pattern: customers enter, browse wall and island displays, and proceed to the checkout counter on the right. The smoke shop display cases are arranged to maximize product visibility along the main aisle.

Rear Perspective

The rear view looks from the back wall toward the store entrance. A central island display unit stands in the foreground with an orange base plinth and white open shelving. Wall-mounted display racks line both side walls. The glass entrance doors and storefront windows are visible at the far end of the space.

The checkout counter runs along the right side of the frame. A branded poster hangs on the left white brick wall. Black cone pendant lights recede into the distance along the center axis. This angle shows the depth of the space and the relationship between the island units, wall shelves, and checkout area. The vape shop design displays are configured to guide customer flow naturally through the store.

About Rtdisplay

This vape store layout uses a combination of wall-mounted shelving, island display units, and a linear checkout counter to organize products by category. The orange-and-white color scheme is applied consistently across all fixtures, with orange header strips for category identification. We are Rtdisplay, a custom manufacturer of every type of vape store display cabinet. We design and build counter, island, wall, and tower display fixtures for vape shops and smoke stores. Our in-house design team produces shop drawings, and our own metal, wood, stone, and glass workshops manufacture every unit. From layout planning to installation, we handle the complete shopfitting process.
